Create Your DIN 913 Drawing Online

Use this DIN 913 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 913 or DIN913, this online drawing tool covers the same Hexagon Socket Set Screws with Flat Point standard reference.

Customize DIN 913 Flat-Point Set Screws

DIN 913 / ISO 4026 is the reference template, not a limit on the customer specification. Change the thread, length, socket, flat-point diameter or end form, hardness, coating and tolerances as required. Any departure from the reference is manufactured to the approved drawing; do not replace the flat point with cone-, cup- or dog-point geometry without engineering approval.

Technical Data Sheet

ETERNAL FASTENER

Wuxi, Jiangsu, China

Email: [email protected]

Web: www.fasteneref.com

WhatsApp: +8615951571207

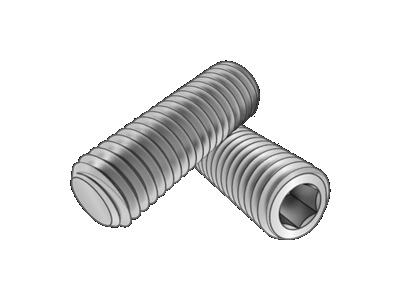

DIN 913 Hexagon Socket Set Screws with Flat Point

Product code

Product specification

M6x10

Product standard

DIN 913

Material / grade

Steel 45

Unit

Mechanical properties

45H

Dimension

Parameter (mm)

Dimension

Parameter (mm)

9.71~10.29

3.7~4

3.44

3.02~3.08

3.5

max = maximum; min = minimum

Material

Material type

Steel

Grade

General technical requirements

DIN 267-1

Thread

Tolerance

45H:5g6g; other classes:6g

Standard

DIN 13-15 DIN 13-12

Mechanical properties

Property class

45H

Standard

DIN ISO 898-5

Tolerance

Product grade

Standard

DIN ISO 4759-1

Surface Treatment

black (heat or chemical); electroplatingDIN 267-9

Surface roughness

DIN 267-2

Inspection & packaging

DIN 267-5

Surface defects

Ref. wt / 1000 pcs (kg)

Technical Data Sheet

Dimensions & size table

Unit: mm

Dimension	P	dp/max	dp/min	e/min	s/min	s/max	t/min
M1.4	0.3	0.7	0.45	0.803	0.711	0.724	0.6
M1.6	0.35	0.8	0.55	0.803	0.711	0.724	0.7
M1.8	0.35	0.9	0.65	0.803	0.711	0.724	0.8
M2	0.4	1	0.75	1.003	0.889	0.902	0.8
M2.5	0.45	1.5	1.25	1.427	1.27	1.295	1.2
M3	0.5	2	1.75	1.73	1.52	1.545	1.2
M4	0.7	2.5	2.25	2.3	2.02	2.045	1.5
M5	0.8	3.5	3.2	2.87	2.52	2.56	2
M6	1	4	3.7	3.44	3.02	3.08	2
M8	1.25	5.5	5.2	4.58	4.02	4.095	3
M10	1.5	7	6.64	5.72	5.02	5.095	4
M12	1.75	8.5	8.14	6.86	6.02	6.095	4.8
M14	2	10	9.64	6.86	6.02	6.095	5.6
M16	2	12	11.57	9.15	8.025	8.115	6.4
M18	2.5	13	12.57	11.43	10.025	10.115	7.2
M20	2.5	15	14.57	11.43	10.025	10.115	8
M22	2.5	17	16.57	13.72	12.032	12.142	9
M24	3	18	17.57	13.72	12.032	12.142	10

Product parameters

M6x10

Dimension	Parameter (mm)
d
P
L
L max
L min
dp max
dp min
e min
s max
s min
t1 min

Technical conditions

Material	Material type
Material	Grade
General technical requirements	DIN 267-1
Thread	Tolerance
Thread	Standard
Mechanical properties	Property class
Mechanical properties	Standard
Tolerance	Product grade
Tolerance	Standard
Surface Treatment	black (heat or chemical); electroplatingDIN 267-9
Surface roughness
Inspection & packaging
Surface defects
Ref. wt / 1000 pcs (kg)

Notes / Remarks

Document No.

Document No.
Revision
Issue date
Page
Prepared by
Approved by
Product code
