Eternal Fastener completed an order of 6-inch-diameter × 1200 mm ASTM A193 Grade B7 full-thread stud bolts, supplied with matching 6-inch ASTM A194 Grade 2H heavy hex nuts, for a high-temperature, high-pressure oil and gas project in the UAE. The destination was identified as Abu Dhabi / Dubai. Both studs and nuts had a plain finish, and the order was delivered on schedule with receipt confirmed by the customer.
The photographs and short video on this page show the actual products and their packing before dispatch. They document the supplied product form, EF and grade markings, and wooden-case packing; they are not photographs of installation or customer receipt.
Order at a glance
| Item | Supplied specification |
|---|---|
| Stud bolts | ASTM A193 Grade B7, full thread |
| Nominal stud diameter | 6 in. (152.4 mm) |
| Stud length | 1200 mm |
| Matching nuts | ASTM A194 Grade 2H heavy hex nuts, 6 in. nominal thread size |
| Surface condition | Plain finish on studs and nuts |
| Project | High-temperature, high-pressure oil and gas service |
| Destination | Abu Dhabi / Dubai, United Arab Emirates |
| Delivery outcome | Delivered on schedule; customer receipt confirmed |
The diameter, length, material grades, destination and delivery outcome above are the order details. The 6-inch nut size refers to its nominal thread diameter, not its width across flats.
Large-diameter studs: what this order demonstrates
A 6-inch nominal diameter and 1200 mm length make this a substantial stud-bolt assembly. For buyers sourcing comparable ASTM A193 B7 stud bolts, this delivery is a concrete reference for Eternal Fastener’s supply of large-diameter, project-specific studs with matching nuts.
At this scale, the procurement specification needs to define thread series, pitch, tolerance class, end configuration and nut dimensions as well as diameter and length. Those details must follow the approved drawing and purchase order. This case does not assign an unconfirmed thread pitch to the delivered parts.

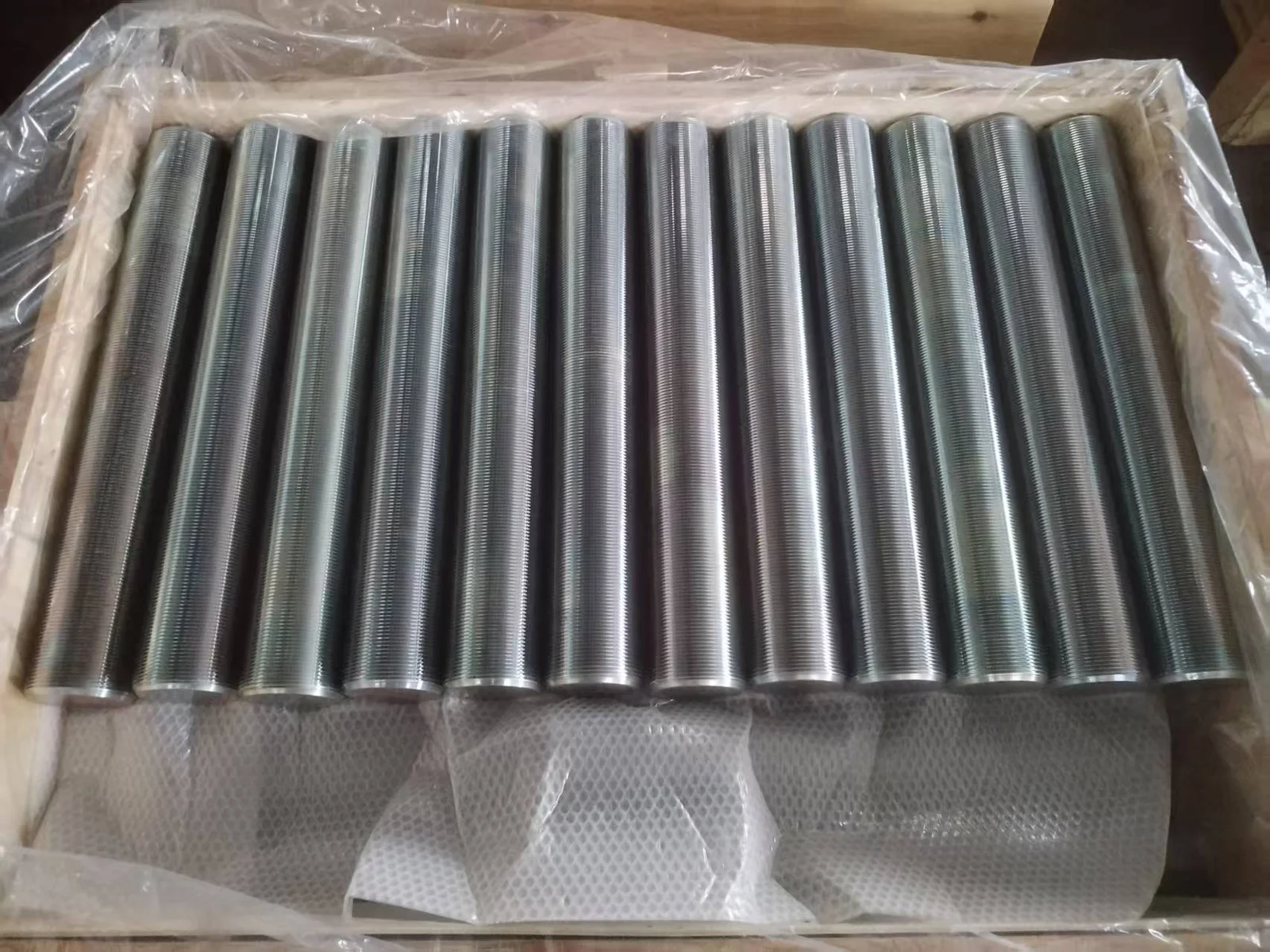

Actual pre-shipment view of the full-thread studs, wooden case, plastic liner and cushioning.
B7 studs and matching 2H heavy hex nuts
ASTM A193 B7 is a quenched-and-tempered chromium-molybdenum alloy-steel bolting grade widely specified for pressure and elevated-temperature service. ASTM A194 Grade 2H heavy hex nuts are a common companion, and were the nuts supplied with this order.
For a 6-inch stud, mechanical-property acceptance must use the applicable diameter range in the specified ASTM edition. The familiar 125 ksi tensile and 105 ksi yield minima for smaller B7 diameters should not be copied onto a 6-inch specification. See our B7 and B16 properties comparison for the distinction between diameter-dependent requirements and material selection.
The supplied 2H heavy hex nuts complete the threaded assembly. For a repeat or similar order, specify the nut grade, thread, dimensions and quantity per stud together, rather than selecting nuts by thread fit alone. Final suitability for the operating temperature and pressure follows the project engineering specification.

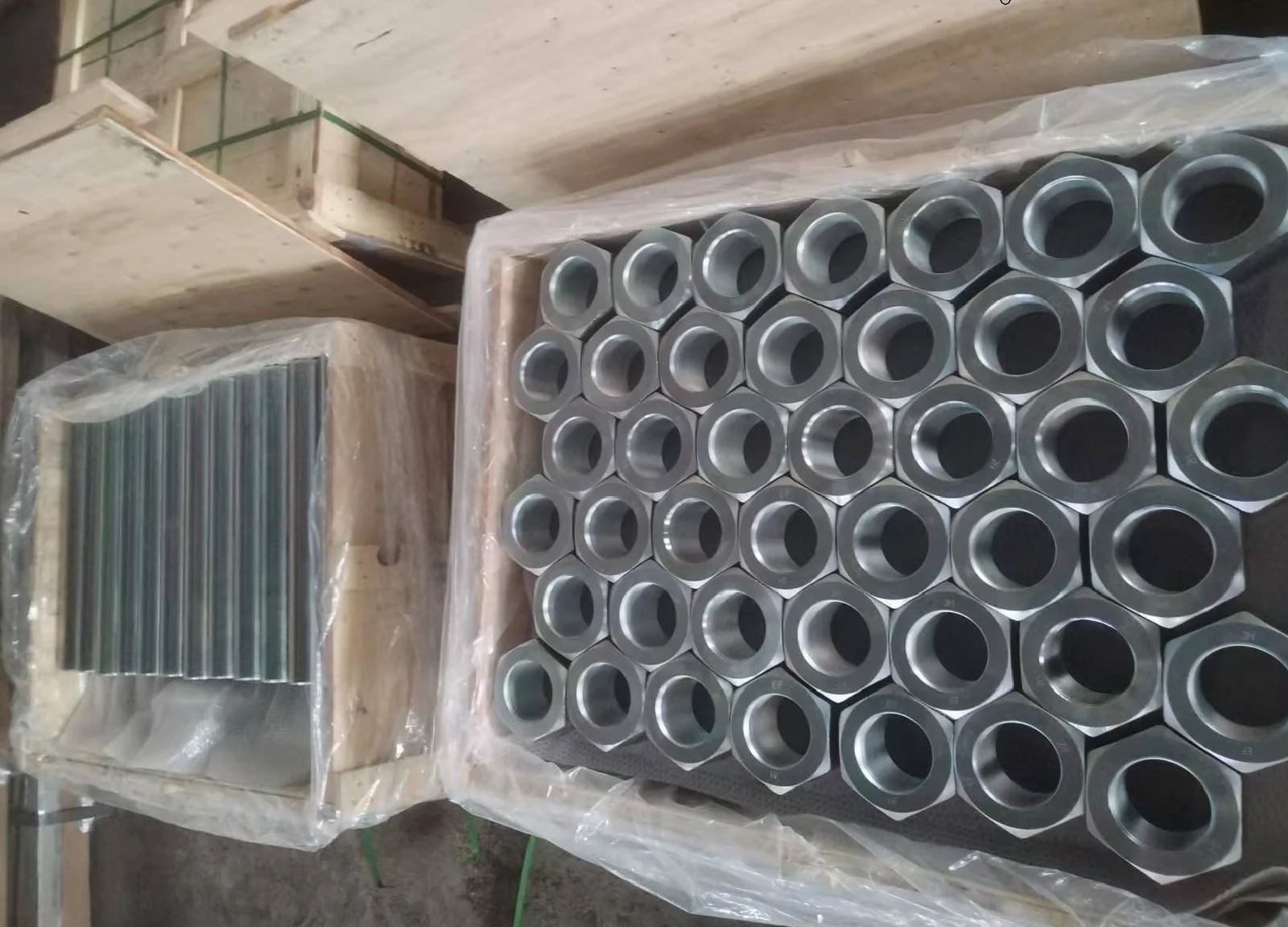

Matching heavy hex nuts in their case; EF and 2H markings are visible on several nut faces.
Product identification: EF, B7 and 2H

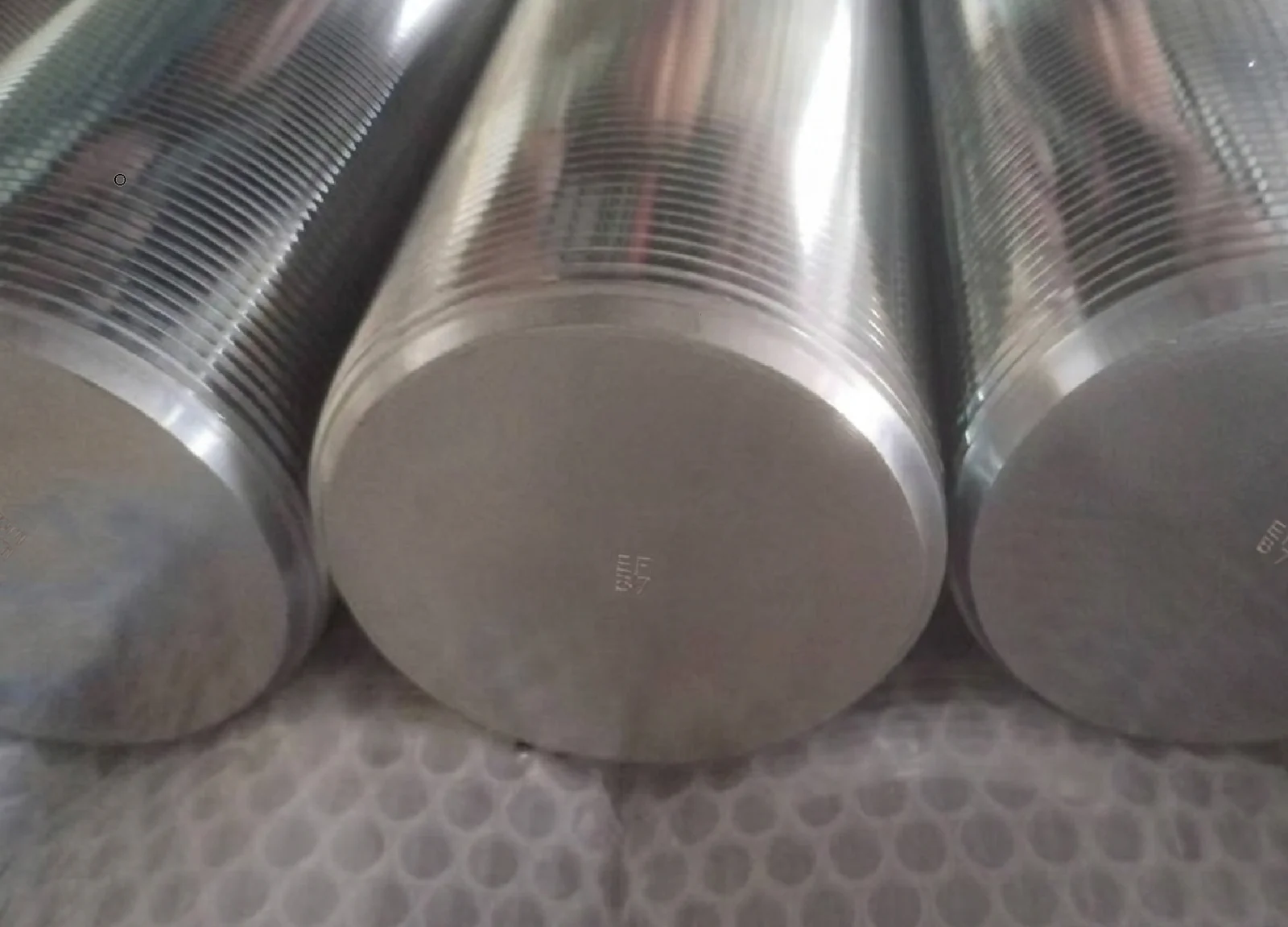

The end-face close-up shows EF and B7 markings on the studs. The nut photograph shows EF and 2H markings. These physical identifiers help a buyer compare the delivered parts with the ordered manufacturer and grade.
Markings support identification, but they do not by themselves verify chemistry, heat treatment or mechanical properties. For a new order, agree the required material certificates, inspection records and batch-traceability arrangements before production. This case does not claim a specific certificate type or an impact-test result that is not reproduced here.
Plain finish and protective packing
Both components were supplied plain, without a specified hot-dip galvanized or PTFE coating on this order. The visible packaging consists of wooden cases, plastic liners and cushioning material, with studs and nuts arranged in separate cases.
For long, heavy threaded parts, packaging matters because damaged threads can delay assembly. The photos show the packing configuration at the time of filming. Plain alloy steel still requires appropriate protection and storage after delivery; it should not be treated as a corrosion-resistant coated product.
Delivered on schedule to the UAE
The order was delivered on schedule and the customer confirmed receipt for the Abu Dhabi / Dubai oil and gas project. This case records that completed delivery without assigning an unconfirmed port, transit time or customs-clearance route.
For procurement planning in the region, our UAE fastener sourcing guide discusses sourcing options. The oil and gas fastener page provides broader product-selection context.
Request a similar B7 / 2H assembly
For a comparable large-diameter order, send the stud diameter and length, ASTM grade and edition, drawing or thread series/pitch/class, nut grade and quantity per stud, surface condition, total quantity, delivery location and required delivery date. Include the project’s certificate and inspection requirements so they can be reviewed with the quotation.
Example RFQ: ASTM A193 B7 full-thread studs, 6 in. × 1200 mm, with 6 in. ASTM A194 2H heavy hex nuts, plain finish. Attach the thread/dimensional drawing, quantities, required documents and delivery schedule.
