Closed End Blind Rivets

Use this ISO 15973 online drawing generator to review the Closed End Blind Rivets geometry and configure body diameter, length and head dimensions. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for ISO 15973, ISO15973, ISO 15973 drawing and ISO 15973 dimensions refer to this page.

Standards
  • ISO 15973
Back to Blind rivetsCompare ISO 15973 equivalents and replacement →

Create Your ISO 15973 Drawing Online

Use this ISO 15973 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as ISO 15973 or ISO15973, this online drawing tool covers the same Closed End Blind Rivets standard reference.

Configure Your ISO 15973 Closed End Blind Rivets Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

ISO 15973

Closed End Blind Rivets

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
ISO 15973

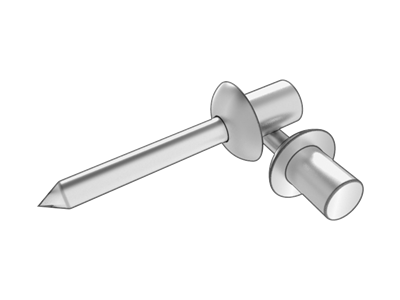

ISO 15973 Closed End Blind Rivets
Product code
Product specification
Φ3.2x4
Product standard
ISO 15973
Material / grade
Steel 45
Unit
mm
Mechanical properties
45H
ISO 15973 technical drawing
Dimension
Parameter (mm)
Dimension
Parameter (mm)
d
3.05~3.28
L
4~5
dk
5.8~6.7
k
1.3
d1
1.85
L1
25

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
Thread
Tolerance
Standard
Mechanical properties
Property class
45H
Standard
Tolerance
Product grade
Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)
Document No.: EF-ISO-15973Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: mm

Dimensiond/maxd/mindk/maxdk/mink/maxd1/maxL1/min
Φ3.23.283.056.75.81.31.8525
Φ44.083.858.46.91.72.3525
Φ4.84.884.6510.18.322.7727
Φ6.46.486.2513.411.62.73.7127
Document No.: EF-ISO-15973Revision: v1Issue date: 2026-09-24Page: 2 / 2
