Large-Flange Blind Rivets

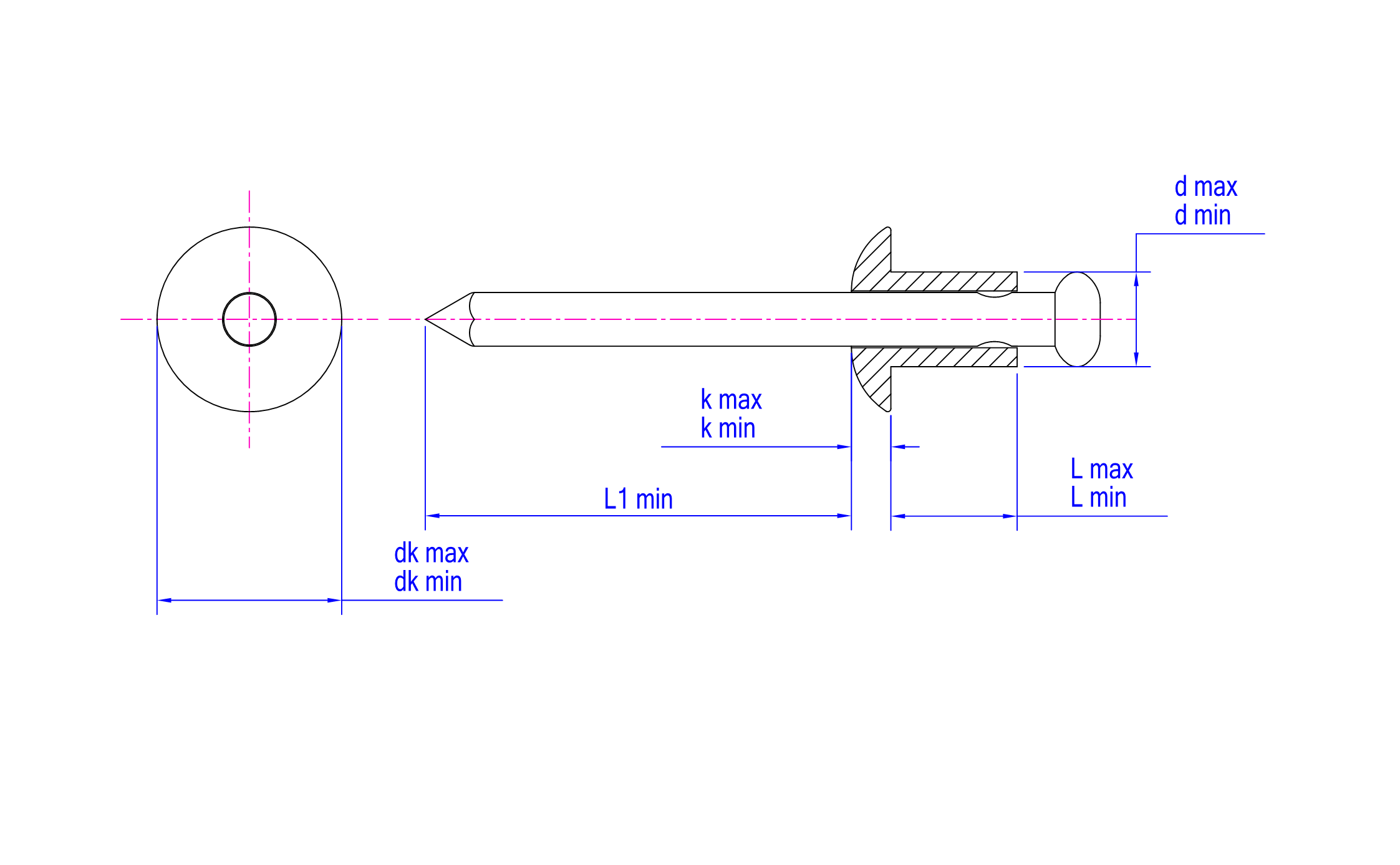

| Standard | DIN 7337 · Supplier Standard |
|---|---|
| Material | Aluminum Alloy Body / Zinc-Plated Carbon Steel Mandrel |
| Strength Grade | AlA/St Large Flange |
| Size Range | 3.2-6.4 mm |
| Surface Treatment | Natural Aluminum Body / Zinc-Plated Mandrel |
01
Product Description
Product Description & Key Specifications
Large-flange blind rivets use a head with a greater diameter than a standard dome head. The enlarged bearing area spreads installation and service load over more of the front panel and reduces local stress concentration.
They are commonly selected for thin sheet, plastic, composite panels, signage and light covers. Flange diameter, panel thickness, material stiffness, grip range and pull-through load should be confirmed for the actual joint.
| Product type | Large-flange blind rivets / large-head blind rivets |
|---|---|
| Reference | DIN 7337 / supplier standard or customer drawing |
| Material | Aluminum alloy body / zinc-plated steel mandrel (AlA/St) |
| Diameter range | 3.2-6.4 mm |
| Head style | Large flange with diameter by size or drawing |
| Panel materials | Thin sheet, plastic, composite and light panel materials |
| Selection basis | Flange diameter, grip range and hole size by panel material and load |
02
Selection
Selection Advantages by Application
Automotive Trim and Plastic Panels
The large flange spreads load across covers, trim and plastic or composite interfaces.
Automotive and EV fastenersSigns and Light Covers
Suitable for signs, guards and thin equipment covers that may be damaged by a smaller standard head.
Construction fasteners03
Assembly
Recommended Matching Products
04
Manufacturing
Manufacturing & Quality Control
Manufacturing CapabilityQuality Control
Aluminum body and large-flange head formingFlange diameter, thickness and bearing-face flatness inspection
Mandrel assembly and body-length controlGrip range, body diameter, hole and installed-sample checks
Line-side or maintenance packaging optionsAgreed pull-through, shear and tensile testing
05
FAQ
Common Questions Before RFQ
When should a large-flange rivet be used?
Use it when the panel is thin or soft, or when the head load needs to be distributed over a larger area.
Will a large flange always prevent plastic damage?
It reduces load concentration, but installation force, hole size and plastic thickness must also be controlled.
What information is needed for quotation?
Send body diameter, length, grip range, flange diameter, hole size, panel materials and quantity.
Need large-flange blind rivets for thin sheet or plastic panels?
Send body diameter, flange diameter, grip range, panel materials, hole size and quantity for quotation.
