Create Your ISO 4033 Drawing Online

Use this ISO 4033 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as ISO 4033 or ISO4033, this online drawing tool covers the same Hexagon Nuts (Style 2) standard reference.

Configure Your ISO 4033 Hexagon Nuts (Style 2) Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

Technical Data Sheet

ETERNAL FASTENER

Wuxi, Jiangsu, China

Email: [email protected]

Web: www.fasteneref.com

WhatsApp: +8615951571207

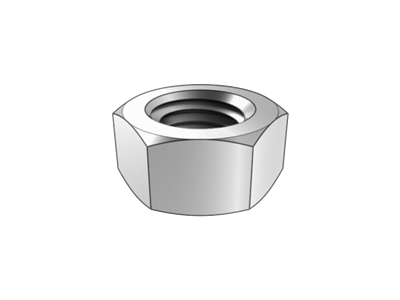

ISO 4033 Hexagon Nuts (Style 2)

Product code

Product specification

Product standard

ISO 4033

Material / grade

Steel 45

Unit

Mechanical properties

10 12 8 9

Dimension

Parameter (mm)

Dimension

Parameter (mm)

0.8

8.79

4.8~5.1

7.78~8

max = maximum; min = minimum

Material

Material type

Steel

Grade

General technical requirements

ISO 8992

Thread

Tolerance

Standard

ISO 724 ISO 965-1

Mechanical properties

Property class

10 12 8 9

Standard

ISO 898-2

Tolerance

Product grade

D≤M16:A; D＞M16:B

Standard

ISO 4759-1

Surface Treatment

plain; electroplatingISO 4042; non-electrolytic zincISO 10683; HDGISO 10684; 如需其他技术要求/Surface Treatment，应由供需协议

Surface defects

ISO 6157-2

Inspection & packaging

ISO 3269

Ref. wt / 1000 pcs (kg)

Technical Data Sheet

Dimensions & size table

Unit: mm

Dimension	P	e/min	k/max	k/min	s/max	s/min
M5	0.8	8.79	5.1	4.8	8	7.78
M6	1	11.05	5.7	5.4	10	9.78
M8	1.25	14.38	7.5	7.14	13	12.73
M10	1.5	17.77	9.3	8.94	16	15.73
M12	1.75	20.03	12	11.57	18	17.73
M14	2	23.36	14.1	13.4	21	20.67
M16	2	26.75	16.4	15.7	24	23.67

Product parameters

Dimension	Parameter (mm)
d
P
e min
k max
k min
s max
s min

Technical conditions

Material	Material type
Material	Grade
General technical requirements	ISO 8992
Thread	Tolerance
Thread	Standard
Mechanical properties	Property class
Mechanical properties	Standard
Tolerance	Product grade
Tolerance	Standard
Surface Treatment	plain; electroplatingISO 4042; non-electrolytic zincISO 10683; HDGISO 10684; 如需其他技术要求/Surface Treatment，应由供需协议
Surface defects
Inspection & packaging
Ref. wt / 1000 pcs (kg)
