Weathering Steel Heavy Hex Nuts (ASTM A563 Grade C3 / DH3) - Grade C3 / Grade DH3 - Weathering Steel / ASTM A563 C3 / DH3 - hex body with internal thread

Weathering Steel Heavy Hex Nuts

StandardASTM A563 Grade C3 · DH3
MaterialWeathering Steel / ASTM A563 C3 / DH3
Strength GradeGrade C3 / Grade DH3
Size RangeM12-M36 / 1/2"-1-1/2"
Surface TreatmentWeathering / Unplated
Quote
01

Product Description

Product Description & Key Specifications

Weathering steel heavy hex nuts are supplied for ASTM A325 Type 3 and weathering steel structural bolt assemblies used in bridges and exposed infrastructure. Common references include ASTM A563 Grade C3 and Grade DH3, with metric sizes M12-M36 and inch sizes from 1/2 in to 1-1/2 in.

These nuts are normally supplied unplated to maintain compatible corrosion behavior with weathering steel bolts and connected steel members. Nut chemistry, proof load grade, thread fit, washer pairing and lot traceability should match the structural bolting package required by the project.

Grade C3 is a weathering steel nut grade used for compatible atmospheric corrosion behavior, while DH3 provides higher-strength weathering heavy hex nut capability where specified. Final selection should follow the bolt grade, structural design and project standard.

Product typeWeathering steel heavy hex nuts
StandardsASTM A563 Grade C3 / DH3
MaterialWeathering Steel / ASTM A563 C3 / DH3
Strength gradeGrade C3 / Grade DH3
Size rangeM12-M36 / 1/2 in-1-1/2 in
Common modelsM16, M20, M22, M24, M30, 3/4 in, 7/8 in, 1 in
Thread typeMetric or UNC heavy hex nut thread by order
Surface finishWeathering / Unplated
DocumentationMTC, CoC, lot traceability and dimensional report on request
Dimensions & SpecificationsASME B18.2.6 Heavy Hex Nuts

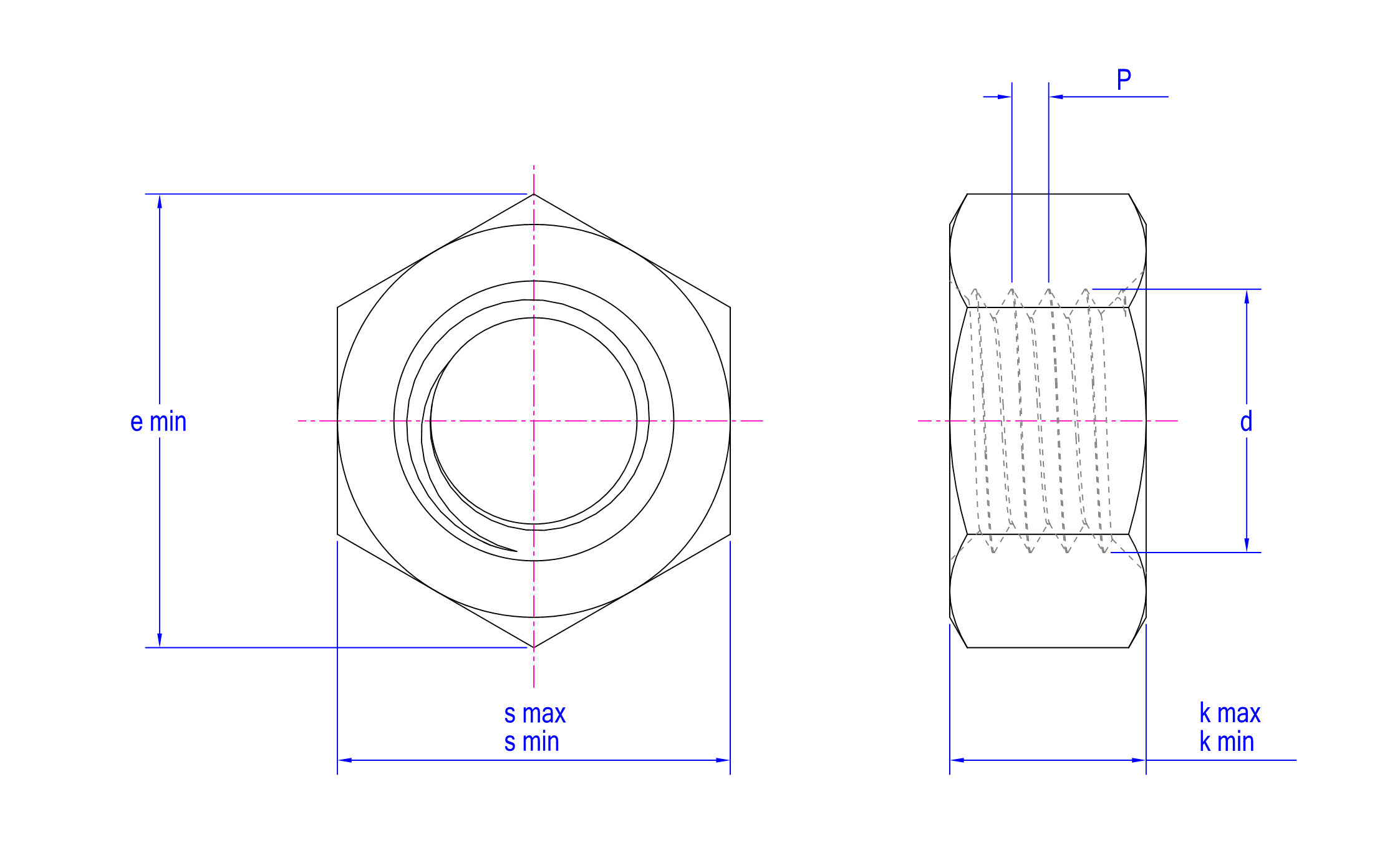

Technical Drawing

ASME B18.2.6 technical drawing

Dimensional Table

Parameter11/21-1/81-1/41-3/81-1/23/45/87/8
P813776610119
k/max1.0120.5041.1391.2151.3781.5050.7580.6310.885
k/min0.9560.4641.0791.1871.311.4330.710.5870.833
s/max1.6250.8751.81222.1882.3751.251.0621.438
s/min1.5750.851.7561.9382.1192.31.2121.0311.394
e/min1.7960.9692.0022.2092.4162.6221.3821.1751.589
