Create Your ISO 14581 Drawing Online

Use this ISO 14581 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as ISO 14581 or ISO14581, this online drawing tool covers the same Hexalobular Sunk Screws standard reference.

Configure Your ISO 14581 Hexalobular Sunk Screws Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

Technical Data Sheet

ETERNAL FASTENER

Wuxi, Jiangsu, China

Email: [email protected]

Web: www.fasteneref.com

WhatsApp: +8615951571207

ISO 14581

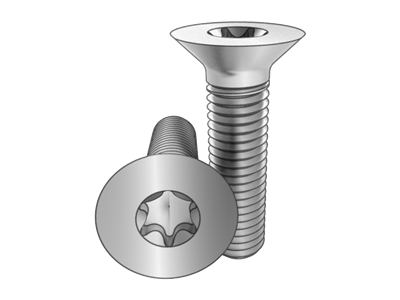

ISO 14581 Hexalobular Sunk Screws

Product code

Product specification

M2x3

Product standard

ISO 14581

Material / grade

Steel 45

Unit

mm

Mechanical properties

4.8 8.8

ISO 14581 technical drawing

Dimension

Parameter (mm)

Dimension

Parameter (mm)

d

M2

P

0.4

L

2.8~3.2

dk

3.5~3.8

k

1.20

No.

T6

e

1.75

t

0.51~0.64

max = maximum; min = minimum

Material

Material type

Steel

Grade

45

General technical requirements

ISO 8992

Thread

Tolerance

6g

Standard

ISO 261 ISO 965-2

Mechanical properties

Property class

4.8 8.8

代号<span></span>

04.8 08.8

Standard

ISO 898-1

Tolerance

Product grade

A

Standard

ISO 4759-1

内六角花形

ISO 10664

Surface Treatment

plain; electroplatingISO 4042; 非电解锌片涂层，技术要求按ISO 10683; HDGISO 10684 ，custom

Surface defects

ISO 6157-1

Inspection & packaging

ISO 3269

Ref. wt / 1000 pcs (kg)

Technical Data Sheet

Dimensions & size table

Unit: mm

Dimension	P	dk/max	dk/min	k/max	No.	e	t/max	t/min
M2	0.4	3.8	3.5	1.20	T6	1.75	0.64	0.51
M2.5	0.45	4.7	4.4	1.50	T8	2.4	0.79	0.66
M3	0.5	5.5	5.2	1.65	T10	2.8	0.83	0.7
M3.5	0.6	7.3	6.94	2.35	T15	3.35	1.32	1.16
M4	0.7	8.4	8.04	2.70	T20	3.95	1.53	1.14
M5	0.8	9.3	8.94	2.70	T25	4.5	1.51	1.12
M6	1	11.3	10.87	3.30	T30	5.6	1.78	1.39
M8	1.25	15.8	15.37	4.65	T45	7.95	2.54	2.15
M10	1.5	18.3	17.78	5	T50	8.95	2.8	2.41

Product parameters

M2x3

Dimension	Parameter (mm)
d
P
L
L max
L min
dk max
dk min
k max
No.
e
t max
t min

Technical conditions

Material	Material type
Material	Grade
General technical requirements	ISO 8992
Thread	Tolerance
Thread	Standard
Mechanical properties	Property class
	代号<span></span>
	Standard
Tolerance	Product grade
Tolerance	Standard
内六角花形
Surface Treatment	plain; electroplatingISO 4042; 非电解锌片涂层，技术要求按ISO 10683; HDGISO 10684 ，custom
Surface defects
Inspection & packaging
Ref. wt / 1000 pcs (kg)

Notes / Remarks

Document No.

Document No.
Revision
Issue date
Page
Prepared by
Approved by
Product code
