ISO 14582 Online Drawing Generator & Dimensions

Hexalobular high countersunk head screws

Use this ISO 14582 online drawing generator to review the Hexalobular high countersunk head screws geometry and configure diameter, pitch, length, head and drive dimensions. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for ISO 14582, ISO14582, ISO 14582 drawing and ISO 14582 dimensions refer to this page.

Standards
  • ISO 14582
Back to Torx screwsCompare ISO 14582 equivalents and replacement →

Create Your ISO 14582 Drawing Online

Use this ISO 14582 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as ISO 14582 or ISO14582, this online drawing tool covers the same Hexalobular high countersunk head screws standard reference.

Configure Your ISO 14582 Hexalobular high countersunk head screws Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

ISO 14582

Hexalobular high countersunk head screws

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
ISO 14582

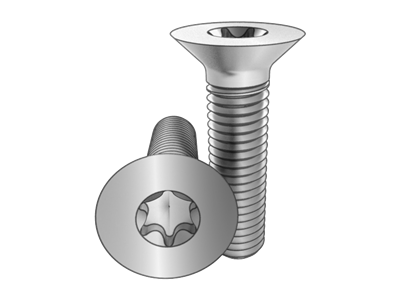

ISO 14582 Hexalobular high countersunk head screws
Product code
Product specification
M3x1
Product standard
ISO 14582
Material / grade
Steel 45
Unit
mm
Mechanical properties
45H
ISO 14582 technical drawing
Dimension
Parameter (mm)
Dimension
Parameter (mm)
d
M3
P
0.5
L
0.8~1.2
dk
6.17~6.57
k
2.2
No.
T10
e
2.8
t
0.92~1.18

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
Thread
Tolerance
Standard
Mechanical properties
Property class
45H
Standard
Tolerance
Product grade
Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)
Document No.: EF-ISO-14582Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: mm

DimensionPdk/maxdk/mink/maxNo.et/maxt/min
M30.56.576.172.2T102.81.180.92
M40.79.028.523.01T203.951.691.3
M50.810.910.273.5T254.51.891.5
M6113.212.464.22T305.62.221.83
M81.2517.917.095.69T457.932.992.6
M101.521.320.496.5T508.953.32.91
Document No.: EF-ISO-14582Revision: v1Issue date: 2026-09-24Page: 2 / 2
