DIN 7964E Online Drawing Generator & Dimensions

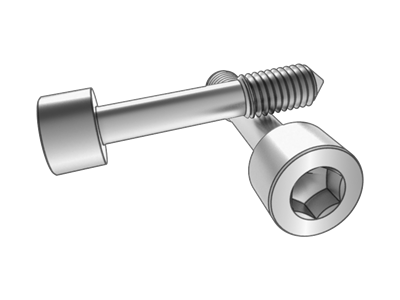

Hexagon socket head cap screws with waisted shank-Sp end

Use this DIN 7964E online drawing generator to review the Hexagon socket head cap screws with waisted shank-Sp end geometry and configure diameter, pitch, length, head and drive dimensions. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for DIN 7964E, DIN7964E, DIN 7964E drawing and DIN 7964E dimensions refer to this page.

Standards

DIN 7964E

Create Your DIN 7964E Drawing Online

Use this DIN 7964E drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 7964E or DIN7964E, this online drawing tool covers the same Hexagon socket head cap screws with waisted shank-Sp end standard reference.

Technical Data Sheet

ETERNAL FASTENER

Wuxi, Jiangsu, China

Email: [email protected]

Web: www.fasteneref.com

WhatsApp: +8615951571207

DIN 7964E Hexagon socket head cap screws with waisted shank-Sp end

Product code

Product specification

M2.5x8

Product standard

DIN 7964E

Material / grade

Steel 45

Unit

Mechanical properties

45H

Dimension

Parameter (mm)

Dimension

Parameter (mm)

M2.5

0.45

7.71~8.29

10.55~11.45

3.1

0.1

1.7~1.9

4.32~4.5

2.3

2.36~2.5

2.02~2.06

1.1

max = maximum; min = minimum

Material

Material type

Steel

Grade

Thread

Tolerance

Standard

Mechanical properties

Property class

45H

Standard

Tolerance

Product grade

Standard

Surface defects

Surface Treatment

Inspection & packaging

Ref. wt / 1000 pcs (kg)

Technical Data Sheet

Dimensions & size table

Unit: mm

Dimension	P	b/max	b/min	da/max	r/min	ds/max	ds/min	dk/max	dk/min	e/min	k/max	k/min	s/min	s/max	t/min
M2.5	0.45	11.45	10.55	3.1	0.1	1.9	1.7	4.5	4.32	2.3	2.5	2.36	2.02	2.06	1.1
M3	0.5	13.7	12.7	3.6	0.1	2.3	2.1	5.5	5.32	2.87	3	2.86	2.52	2.58	1.3
M4	0.7	16.4	15	4.7	0.2	3	2.8	7	6.78	3.44	4	3.82	3.02	3.08	2
M5	0.8	18.9	17.3	5.7	0.2	3.9	3.7	8.5	8.28	4.58	5	4.82	4.02	4.095	2.5
M6	1	21	19	6.8	0.25	4.6	4.4	10	9.78	5.72	6	5.7	5.02	5.14	3
M8	1.25	25.7	23.2	9.2	0.4	6.2	6	13	12.73	6.86	8	7.64	6.02	6.14	4
M10	1.5	30.8	27.8	11.2	0.4	7.7	7.5	16	15.73	9.15	10	9.64	8.025	8.175	5
M12	1.75	36	32.5	13.7	0.6	9.2	9	18	17.73	11.43	12	11.57	10.025	10.175	6
M16	2	45	41	17.7	0.6	12.7	12.5	24	23.67	16	16	15.57	14.032	14.212	8
M20	2.5	54.5	49.5	22.4	0.8	16.2	16	30	29.67	19.44	20	19.48	17.05	17.23	10
M24	3	63.5	57.5	26.4	0.8	19.2	19	36	35.61	21.73	24	23.48	19.065	19.275	12
M30	3.5	78	71	33.4	1	24.2	24	45	44.61	25.15	30	29.48	22.065	22.275	15.5

Dimension	Parameter (mm)
d
P
L
L max
L min
b max
b min
da max
r min
ds max
ds min
dk max
dk min
e min
k max
k min
s max
s min
t min

Document No.
Revision
Issue date
Page
Prepared by
Approved by
Product code
