| Standard | OEM / Furniture connector system |
|---|---|
| Material | Zinc alloy cam / carbon steel connecting bolt / PA plastic sleeve |
| Strength Grade | Furniture hardware grade / OEM |
| Size Range | Cam Ø15 mm / bolt sizes by panel design |
| Surface Treatment | Nickel plated or zinc plated metal / black or white sleeve |
Product Description

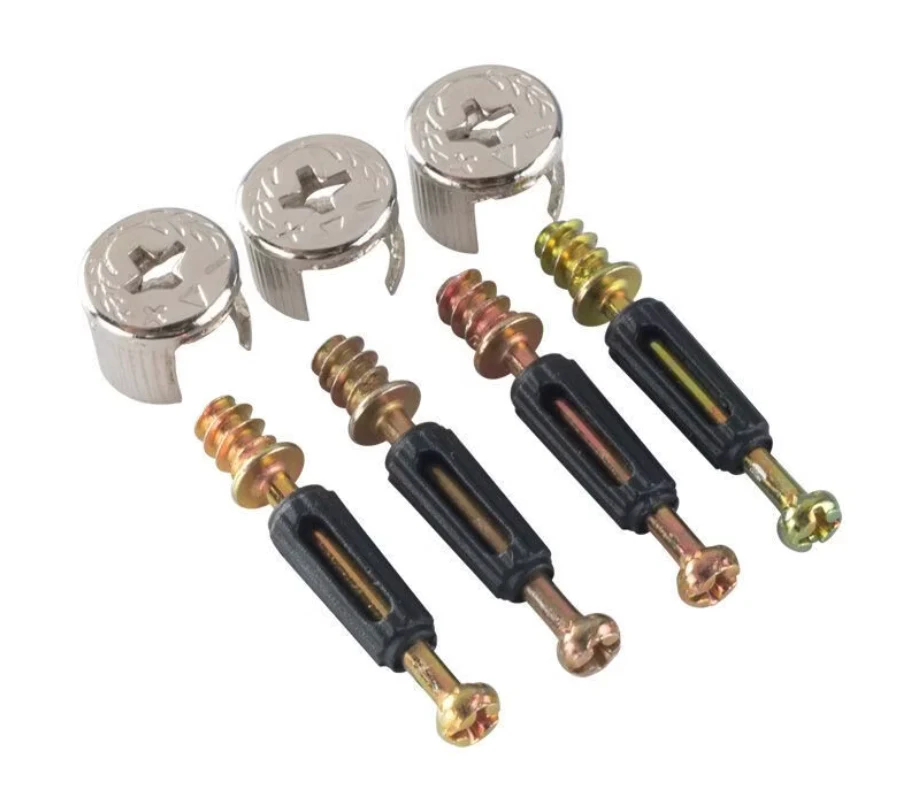

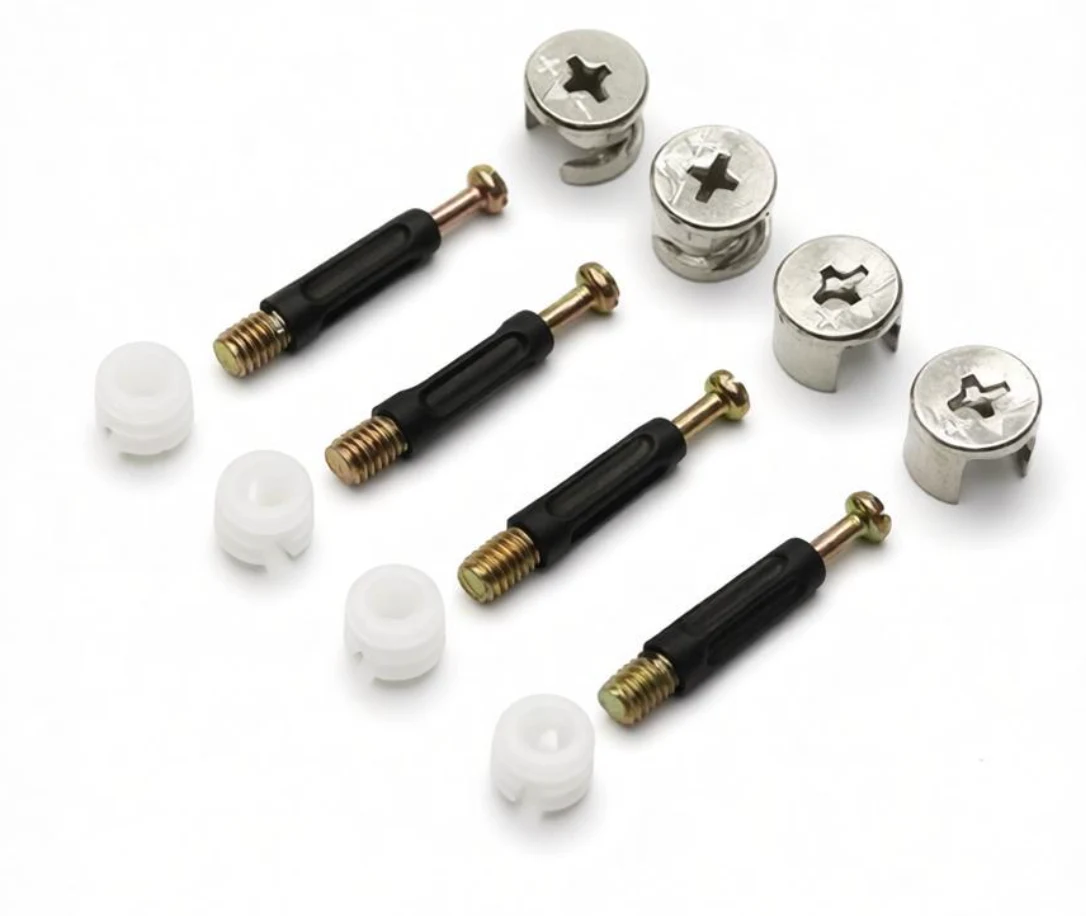

Minifix 3-in-1 furniture connector fittings are concealed knock-down hardware for joining panels without visible fasteners. Each set combines a zinc-alloy eccentric cam, a carbon-steel connecting bolt or dowel, and a PA plastic expansion sleeve/body.
The cam locks onto the connecting bolt as it is turned, while the sleeve supports the panel and helps maintain a consistent joint. The system is suitable for flat-pack cabinets, wardrobes, shelving, office furniture and other repeatedly assembled panel products.
We supply standard or drawing-based sets with metal finish and sleeve color matched to the furniture design. Confirm panel thickness, drilling layout, cam size, bolt length, thread, sleeve color, quantity and packing requirements in the RFQ.
| Product type | Minifix 3-in-1 cam connector fitting |
|---|---|
| Components | Zinc-alloy eccentric cam + steel connecting bolt/dowel + PA plastic sleeve |
| Common cam size | Ø15 mm; other sizes by drawing |
| Bolt | Carbon steel, length and thread matched to panel design |
| Sleeve | PA plastic expansion sleeve/body in black, white or custom color |
| Surface finish | Nickel plated or zinc plated metal components |
| Application | Flat-pack furniture, cabinets, wardrobes, shelving and office furniture |
| Standard | OEM / furniture connector system |
| Documentation | Dimensional report, material declaration and CoC available when required |
Selection
Concealed cam-and-bolt joints support efficient knock-down assembly for cabinet sides, shelves and wardrobe panels.
Connector fittingsMatched connector sets simplify packing, transport and repeated installation of modular furniture panels.
Furniture connector fittingsFor proprietary drilling patterns or panel constructions, we can quote connector geometry and packing from an OEM drawing.
Submit a technical drawingManufacturing
FAQ
A typical set includes one eccentric cam, one connecting bolt or dowel and one plastic expansion sleeve/body.
Panel thickness and drilling depth are project dependent. Send the panel drawing or dimensions so we can match the cam, bolt and sleeve.
Yes. Black and white are common options; other colors can be quoted for approved quantities and color references.
Yes. We support drawing-based connector dimensions, bolt lengths, drilling layouts and kit packing.
Please provide panel thickness, cam diameter, bolt length and thread, drilling layout, sleeve color, quantity and packing requirements.
Send the panel thickness, drilling drawing, connector dimensions, sleeve color and quantity. We will recommend a matched 3-in-1 set and provide a project quotation.
