| Standard | DIN -ISO fastener references · OEM drawing / project facade specification |
|---|---|
| Material | SS304 / SS316 |
| Strength Grade | A2 / A4 |
| Size Range | M4-M12 / project range |
| Surface Treatment | Passivated / Pickled / Electropolished on request |
Product Description

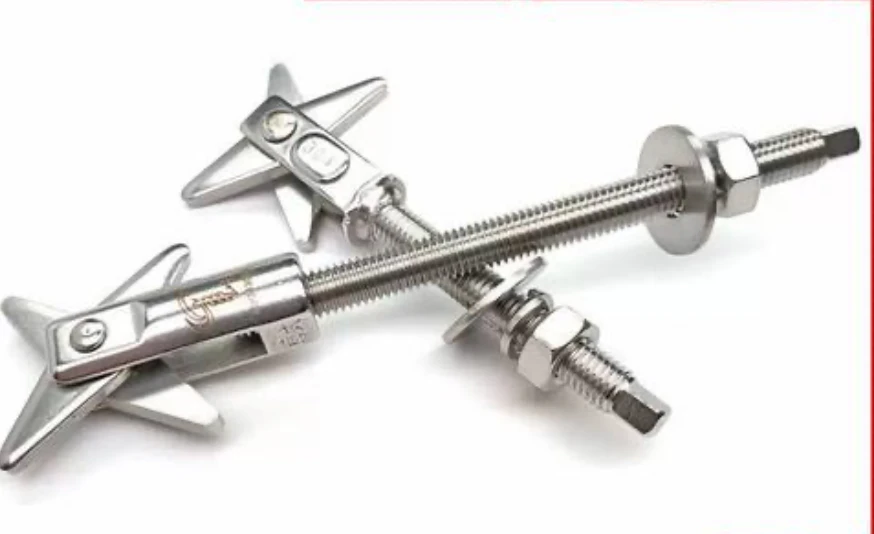

Stainless scissor anchors use a folding wing, scissor arm or toggle-style mechanism that passes through an opening and expands behind the substrate. The opened wing creates rear-side bearing, making this anchor type useful for hollow panels, hollow block, facade cavities, ceiling service supports and one-side-access installation points.
SS304 / A2 options suit indoor and moderate outdoor service, while SS316 / A4 is preferred for exterior facades, coastal buildings, humid equipment spaces and chloride exposure. Project supply can be made to OEM drawing with controlled wing span, grip range, screw length, washer arrangement and surface finish.
Scissor anchors are normally selected for light to medium duty support rather than heavy structural anchorage. Capacity depends on panel material, panel thickness, rear clearance, edge distance, load direction and wing geometry, so safety-critical applications should be confirmed by test data, project approval or engineering calculation.
| Product type | Stainless folding / scissor anchors for hollow substrates |
|---|---|
| Reference | OEM drawing / project facade specification / DIN-ISO fastener references |
| Material | SS304 / SS316 |
| Grade | A2 / A4 or project drawing grade |
| Size range | M4-M12 / custom wing span and grip range |
| Common RFQ sizes | M5, M6, M8, M10 and M12 with project grip range |
| Mechanism | Folding wing or scissor arm that opens behind the substrate |
| Surface finish | Passivated / pickled / electropolished on request |
| Required project data | Panel thickness, rear clearance, hole diameter, load, edge distance and environment |
| Documentation | MTC, CoC, dimensional report and sample test report on request |
Selection
SS316 scissor anchors can fasten accessories, light secondary supports and panel-mounted components where the anchor must bear against the rear face of a facade cavity or panel.
Facade fastenersFor light cable trays, clamps, light fixtures and maintenance supports, the folding mechanism supports installation when access is available from one side only.
Construction fastenersSS316 / A4 scissor anchors are suitable for wet rooms, coastal facilities and outdoor panels where zinc-plated anchors may not provide enough corrosion resistance.
Marine fastenersScissor anchors can be used for light brackets, cable accessories and enclosure support details in PV or outdoor electrical installations when the substrate is hollow or panel-based.
Renewable energy fastenersAssembly
Manufacturing
FAQ
They are used in hollow panels, hollow walls, hollow block, facade cavities and one-side-access areas. The substrate material and thickness determine the allowable load.
Confirm diameter, screw length, substrate thickness, rear clearance, required wing span, material, surface finish, load requirement, environment, quantity and whether sample testing is needed.
Only when verified by project design, test data or approval. Scissor anchors are commonly used for light to medium duty anchorage; heavy structural loads usually require an approved concrete or structural anchor system.
SS304 / A2 is suitable for indoor or moderate outdoor use. SS316 / A4 is preferred for exterior facades, humid service, coastal exposure and chloride environments.
Yes. Wing geometry, grip range, screw length, washer arrangement and packaging can be produced to drawing or sample when the project provides the installation details.
Send diameter, substrate thickness, rear clearance, screw length, wing span, material, finish, load, environment and quantity. Our team can review a stainless scissor anchor option for your panel, facade or cavity fixing project.
