Titanium Flat Washers

Standard	DIN 125 · ISO 7089 · ASTM B348 material ref
Material	Ti Grade 2
Strength Grade	—
Size Range	M3-M16
Surface Treatment	Anodized

Product Description

Product Description & Key Specifications

Titanium Grade 2 flat washers are lightweight, corrosion-resistant washers used with titanium bolts, titanium nuts and mixed-material assemblies where weight reduction, seawater resistance or non-magnetic behavior is valuable. They follow ISO 7089 / DIN 125 references with ASTM B348 material reference.

Grade 2 titanium provides excellent corrosion resistance and good formability, making it suitable for washers in marine hardware, aerospace secondary assemblies, medical equipment supports and renewable energy equipment. Washer selection should consider galvanic compatibility when titanium is installed with stainless, aluminum or carbon steel hardware.

M3-M16 washers are supplied with anodized finish for appearance, identification and surface condition. RFQs should confirm washer dimensions, titanium grade, color or anodizing requirement, mating fastener material, certificate level and whether matching titanium bolts or nuts are required.

Product type	Titanium flat washers
Standards	ISO 7089 / DIN 125 / ASTM B348 material reference
Material	Titanium Grade 2
Strength grade	Grade 2 material condition by project specification
Size range	M3-M16
Common models	M3, M4, M5, M6, M8, M10, M12, M16
Washer form	Flat washer by DIN / ISO reference or drawing
Surface finish	Anodized
Matched hardware	Titanium hex bolts, titanium hex nuts and titanium socket screws
Documentation	MTC, CoC, dimensional report and anodizing report on request

Dimensions & SpecificationsDIN 125A / ISO 7089

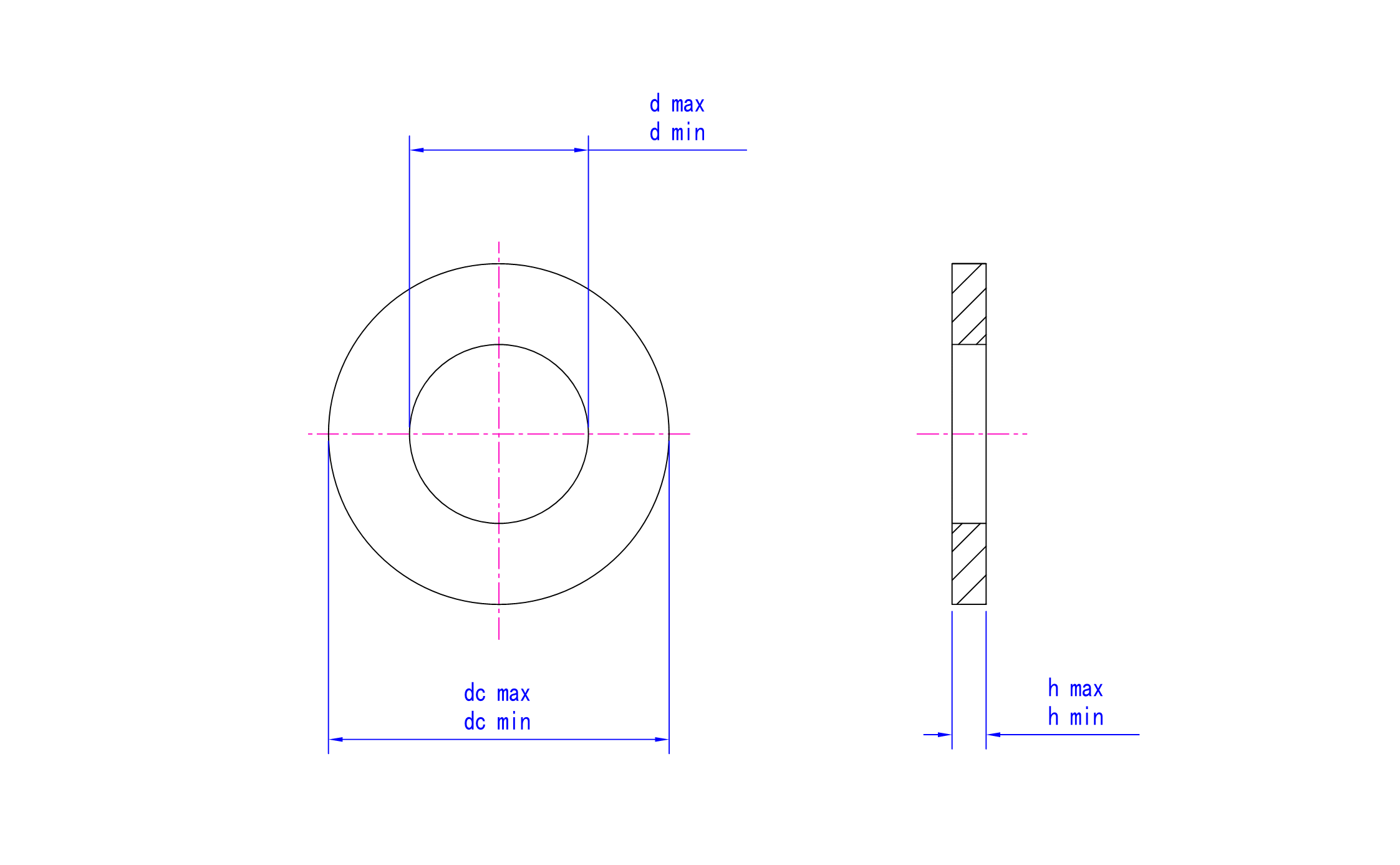

Technical Drawing

Dimensional Table

Parameter	Φ1.6	Φ1.7	Φ2	Φ2.3	Φ2.5	Φ2.6	Φ3	Φ3.5	Φ4	Φ5	Φ6	Φ7	Φ8	Φ10	Φ12	Φ14	Φ16	Φ18	Φ20	Φ22	Φ24	Φ26	Φ27	Φ28	Φ30	Φ32	Φ33	Φ35	Φ36
d/min	1.7	1.8	2.2	2.5	2.7	2.8	3.2	3.7	4.3	5.3	6.4	7.4	8.4	10.5	13	15	17	19	21	23	25	27	28	29	31	33	34	36	37
d/max	1.84	1.94	2.34	2.64	2.84	2.94	3.38	3.88	4.48	5.48	6.62	7.62	8.62	10.77	13.27	15.27	17.27	19.33	21.33	23.33	25.33	27.33	28.33	29.33	31.39	33.62	34.62	36.62	37.62
dc/max	4	4.5	5	6	6	7	7	8	9	10	12	14	16	20	24	28	30	34	37	39	44	50	50	50	56	60	60	66	66
dc/min	3.7	4.2	4.7	5.7	5.7	6.64	6.64	7.64	8.64	9.64	11.57	13.57	15.57	19.48	23.48	27.48	29.48	33.38	36.38	38.38	43.38	49.38	49.38	49.38	55.26	58.8	58.8	64.8	64.8
h/max	0.35	0.35	0.35	0.55	0.55	0.55	0.55	0.55	0.9	1.1	1.8	1.8	1.8	2.2	2.7	2.7	3.3	3.3	3.3	3.3	4.3	4.3	4.3	4.3	4.3	5.6	5.6	5.6	5.6
h/min	0.25	0.25	0.25	0.45	0.45	0.45	0.45	0.45	0.7	0.9	1.4	1.4	1.4	1.8	2.3	2.3	2.7	2.7	2.7	2.7	3.7	3.7	3.7	3.7	3.7	4.4	4.4	4.4	4.4

Engineering references

Technical resources

Review the applicable dimensions, drawing and standard relationship before confirming the ordered specification.

Dimensions and drawingCustom & Non-Standard DIN 125A / ISO 7089 Plain WashersOpen drawing →Standard cross-referenceDIN 125A vs ISO 7089: equivalents and replacement guideOpen cross-reference →

Selection

Selection Advantages by Application

Aerospace Lightweight Assemblies

Titanium washers are used in non-critical lightweight aerospace assemblies where corrosion resistance, low weight and material traceability matter.

Aerospace fasteners

Marine and Coastal Equipment

Grade 2 titanium washers support seawater and coastal hardware where strong corrosion resistance is required with compatible titanium fasteners.

Marine fasteners

Renewable Energy Equipment

Anodized titanium washers can be used in offshore renewable and exposed equipment assemblies where corrosion resistance and weight reduction are useful.

Renewable energy fasteners

Assembly

Recommended Matching Products

Titanium Hex BoltsPrimary bolt pairing for titanium washer assemblies.

Titanium Hex NutsMatching nut option for complete titanium bolt-nut-washer sets.

Titanium Socket Head Cap ScrewsSocket screw option for titanium assemblies.

Nickel Alloy Flat WashersAlternative corrosion-resistant washer option for severe service nickel alloy bolting.

Stainless Hex Head Bolts Full ThreadStainless alternative where titanium is not required.

Manufacturing

Manufacturing & Quality Control

Manufacturing CapabilityQuality Control

Stamping, machining or waterjet cutting from Grade 2 titanium stockASTM B348 material certificate and heat number verification

DIN / ISO reference or custom washer dimensionsID, OD, thickness and flatness inspection

Anodized finish by project requirementColor, surface appearance and coating report support when specified

Washer supply alone or with titanium fastener setsMaterial compatibility and package traceability checks

Clean packaging for aerospace, marine and equipment projectsMTC, CoC and dimensional reports prepared on request

FAQ

Common Questions Before RFQ

What are Titanium Grade 2 washers used for?

They are used where lightweight corrosion-resistant washers are needed, especially in marine, aerospace and renewable equipment assemblies.

Can titanium washers be anodized?

Yes. Anodizing is available for appearance, identification and surface condition requirements.

Should titanium washers be used with titanium bolts?

They are commonly paired with titanium bolts and nuts for material compatibility, but the final combination should follow the joint design.

Are certificates available?

Yes. MTC, CoC, dimensional reports and anodizing reports can be supplied when required.

What RFQ details are needed?

Send size, standard or drawing, titanium grade, anodizing requirement, quantity, mating fastener and certificate scope.

Need Titanium Grade 2 flat washers?

Send washer size, drawing, titanium grade, anodizing requirement, quantity and matching fastener needs. We can quote M3-M16 titanium washers for aerospace, marine and renewable equipment.
