Large Plate Washers
| Standard | DIN 440 · EN 14399 ref · OEM |
|---|---|
| Material | Q355 / 42CrMo |
| Strength Grade | — |
| Size Range | Project range |
| Surface Treatment | HDG |
01
Product Description
Product Description & Key Specifications
Large plate washers are oversized bearing washers used under anchor nuts, structural bolts or baseplate connections where a standard flat washer does not provide enough bearing area. They help distribute load over concrete baseplates, slotted holes, timber supports or heavy structural plates.
This product is supplied in Q355 or 42CrMo according to OEM drawings, DIN 440 references or EN 14399 project requirements. The correct washer is defined by hole diameter, outside dimensions, thickness, material grade, coating, bearing load and whether the joint uses anchor rods, tower bolts, structural bolts or equipment base fasteners.
Hot-dip galvanized finish is common for outdoor wind, solar and infrastructure foundations. Large plate washers can be supplied as single washers or packed with straight anchor bolts, ASTM F1554 anchor rods, EN 14399 nuts or project-specific foundation hardware.
| Product type | Large plate washers / oversized anchor washers / bearing plates |
|---|---|
| Standards | OEM drawing / DIN 440 reference / EN 14399 reference |
| Material | Q355 / 42CrMo |
| Strength grade | Project-specific steel grade and thickness |
| Size range | Project range by drawing |
| Common models | For M20, M24, M30, M36, M42 and M48 anchor bolt assemblies by drawing |
| Washer form | Round, square or rectangular plate washer with custom hole and thickness |
| Surface finish | Hot-dip galvanized |
| Matched hardware | Straight anchor bolts, ASTM F1554 anchor rods, EN 14399 heavy hex nuts and foundation sets |
| Documentation | MTC, dimensional report, coating report and project packing list on request |
Dimensions & SpecificationsDIN 440

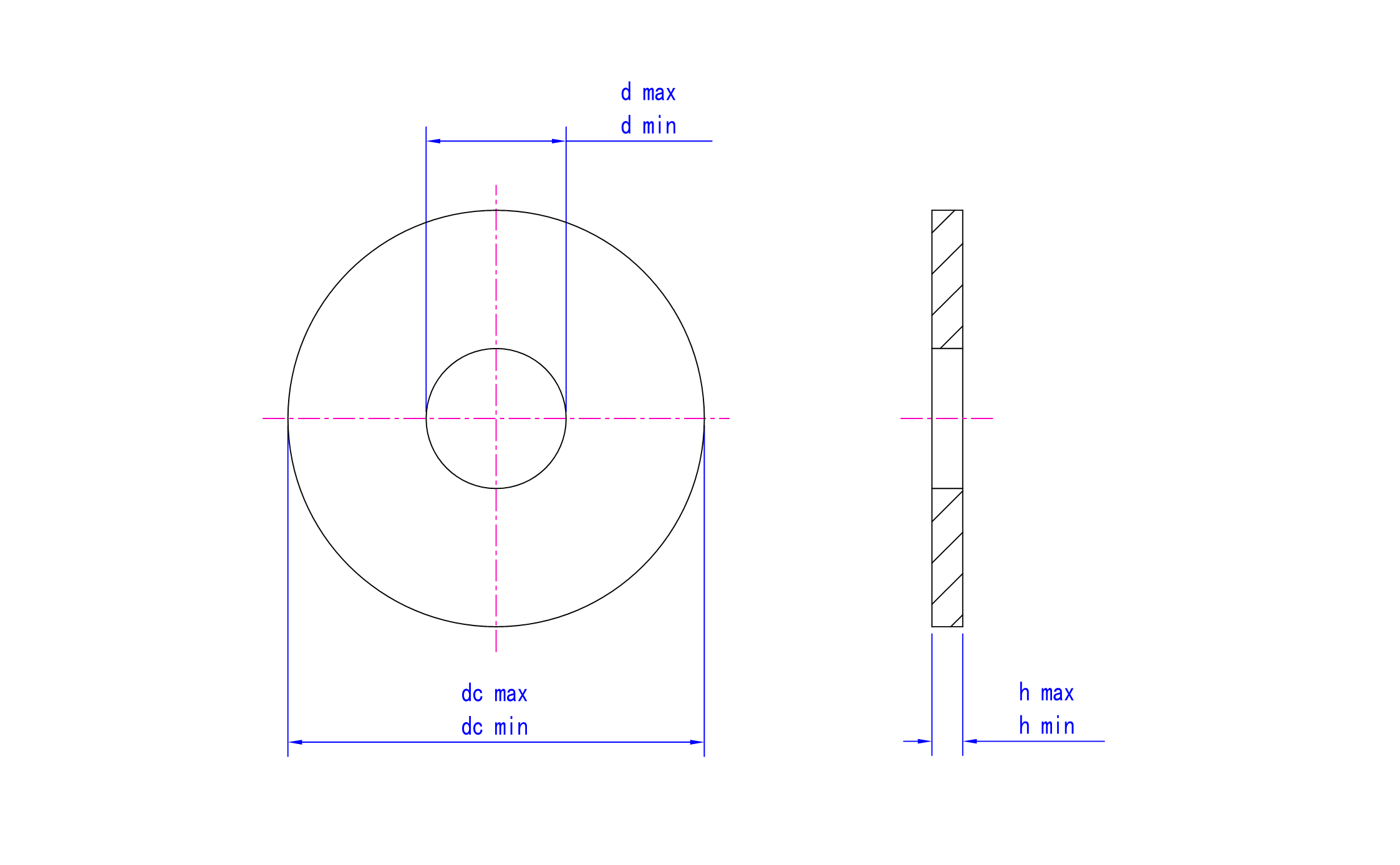

Technical Drawing
Dimensional Table
| Parameter | Φ5 | Φ6 | Φ8 | Φ10 | Φ12 | Φ14 | Φ16 | Φ20 | Φ22 | Φ24 | Φ27 | Φ30 | Φ33 | Φ36 | Φ39 | Φ42 | Φ45 | Φ48 | Φ52 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d/min | 5.5 | 6.6 | 9 | 11 | 13.5 | 15.5 | 17.5 | 22 | 24 | 26 | 30 | 33 | 36 | 39 | 42 | 45 | 48 | 52 | 56 |
| d/max | 5.8 | 6.96 | 9.36 | 11.43 | 13.93 | 15.93 | 18.2 | 22.84 | 24.84 | 26.84 | 30.84 | 34 | 37 | 40 | 43 | 46 | 49 | 53.2 | 57.2 |
| dc/max | 18 | 22 | 28 | 34 | 44 | 50 | 56 | 72 | 80 | 85 | 98 | 105 | 112 | 125 | 140 | 150 | 160 | 170 | 180 |
| dc/min | 16.9 | 20.7 | 26.7 | 32.4 | 42.4 | 48.4 | 54.1 | 70.1 | 78.1 | 82.8 | 95.8 | 102.8 | 109.8 | 122.5 | 137.5 | 147.5 | 157.5 | 167.5 | 177.5 |
| h/max | 2.3 | 2.3 | 3.6 | 3.6 | 4.6 | 4.6 | 6 | 7 | 7 | 7 | 7 | 7 | 7 | 9.2 | 9.2 | 9.2 | 9.2 | 11.2 | 11.2 |
| h/min | 1.7 | 1.7 | 2.4 | 2.4 | 3.4 | 3.4 | 4 | 5 | 5 | 5 | 5 | 5 | 5 | 6.8 | 6.8 | 6.8 | 6.8 | 8.8 | 8.8 |
02
Selection
Selection Advantages by Application
Wind Tower Foundation Anchor Sets
Large HDG plate washers are used under anchor nuts in wind tower foundation cages and base rings. Common RFQs include M30-M48 anchor assemblies with washer plates packed by foundation set.
Renewable energy fastenersSolar Steel Structures and Equipment Bases
Q355 plate washers support solar foundations, equipment skids and structural baseplates where slotted holes or large bearing areas require custom washer dimensions.
Construction fastenersPower and Heavy Industrial Foundations
42CrMo or Q355 washer plates can be specified for transformer bases, machinery foundations and heavy energy equipment where anchor load distribution and HDG corrosion protection are required.
Power generation fasteners03
Assembly
Recommended Matching Products
04
Manufacturing
Manufacturing & Quality Control
Manufacturing CapabilityQuality Control
Plate cutting, punching, drilling or machining by drawingQ355 / 42CrMo material and thickness verification
Round, square or rectangular washer plate productionHole diameter, outside dimensions, thickness and flatness inspection
Hot-dip galvanizing for outdoor foundation serviceCoating thickness, adhesion, venting and visual inspection after HDG
Washer plates supplied alone or with anchor bolt setsFit check with anchor diameter and nut/washer stack when specified
Project packaging by foundation, tower section or equipment baseMTC, coating report and packing list matched to project labels
05
FAQ
Common Questions Before RFQ
When should a large plate washer be used?
Use a large plate washer when a standard flat washer does not provide enough bearing area for anchor bolts, slotted holes, baseplates or heavy foundation connections.
Are large plate washers standard parts?
Many are made to project drawings because hole diameter, outside size, thickness and shape depend on the anchor bolt and baseplate design.
Can plate washers be hot-dip galvanized?
Yes. HDG is common for outdoor foundations and renewable energy structures. Coating thickness and hole clearance should be considered.
What materials are available?
Q355 and 42CrMo are available according to project load, thickness and certificate requirements.
Can washers be supplied with anchor bolts and nuts?
Yes. Large plate washers can be packed with anchor bolts, nuts and standard washers by foundation set or project line item.
Need large plate washers for anchor bolt foundations?
Send your washer drawing, anchor bolt size, hole diameter, outside dimensions, thickness, material, HDG requirement and packaging plan. We can quote plate washers for wind, solar and heavy equipment foundations.
