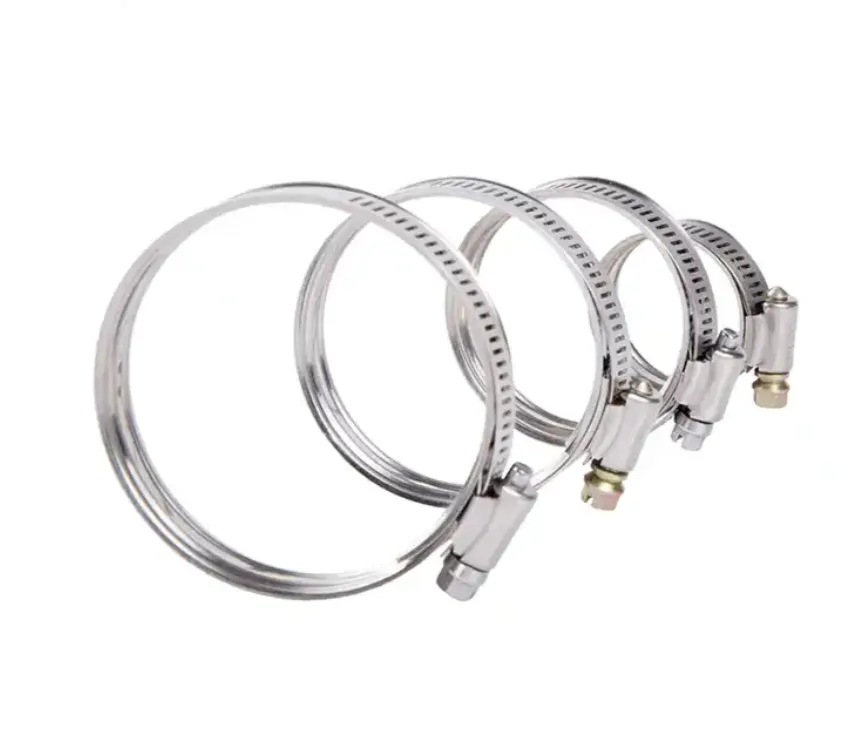

Stainless Worm Drive Hose Clamps
| Standard | DIN 3017 · SAE J1508 |
|---|---|
| Material | SS304 / SS316 |
| Strength Grade | — |
| Size Range | 8-120mm |
| Surface Treatment | Passivation |
01
Product Description
Product Description & Key Specifications
DIN 3017 / SAE J1508 stainless worm drive hose clamps are supplied in SS304 / SS316 for marine machinery hose, ventilation ducting, low-pressure pipe connections and general corrosion-resistant clamping. Common clamping range is 8-120 mm with passivated stainless surface.
A worm drive hose clamp uses a band, housing and screw to tighten around a hose or duct. Correct selection should confirm clamping diameter range, band width, band thickness, screw material, housing material, edge condition and whether the assembly is fully stainless or mixed stainless.
SS304 clamps suit general outdoor and equipment service, while SS316 clamps are preferred for marine, coastal, washdown and chloride-exposed environments. Hose clamps should not be used as structural fasteners, pressure-rated flange clamps or safety-critical retaining devices unless the project specification approves the application.
| Product type | Stainless worm drive hose clamps |
|---|---|
| Standards | DIN 3017 / SAE J1508 reference |
| Material | SS304 / SS316 |
| Strength grade | Project/OEM requirement, no bolt strength class |
| Size range | 8-120 mm clamping diameter range |
| Common models | 8-12 mm, 10-16 mm, 16-25 mm, 20-32 mm, 32-50 mm, 60-80 mm |
| Clamp components | Band, housing and worm screw material confirmed by order |
| Surface finish | Passivated stainless surface |
| Documentation | CoC, material certificate and dimensional report on request |
02
Selection
Selection Advantages by Application
Marine Machinery Hose Connections
SS316 worm drive hose clamps are preferred for marine machinery, bilge lines, ventilation hose and auxiliary systems exposed to salt spray. Common RFQ ranges include 20-32 mm, 32-50 mm and 60-80 mm.
Marine fastenersWater Treatment / Washdown Equipment
Passivated SS316 clamps can be used on selected washdown hoses, pump auxiliary lines and low-pressure equipment connections. Confirm chemical compatibility, diameter range and cleanability.
Washdown equipment fastenersRenewable Equipment & Cable/Hose Routing
SS304 / SS316 hose clamps support non-structural hose and cable routing on outdoor renewable equipment. Confirm they are not being used as load-bearing fasteners.
Renewable energy fastenersIndustrial Ventilation & Ducting
Stainless worm drive clamps are used for ventilation ducts, flexible hoses and light pipe sleeves where adjustable clamping and corrosion resistance are required.
Infrastructure fasteners03
Assembly
Recommended Matching Products
04
Manufacturing
Manufacturing & Quality Control
Manufacturing CapabilityQuality Control
Band forming, perforation and housing assembly by clamp rangeIncoming SS304 / SS316 strip and screw material verification
Worm screw assembly and clamp diameter settingClamping range, band width and screw engagement inspection
Passivation and stainless surface finishingVisual inspection for burrs, sharp edges and housing defects
Standard and OEM clamp range supplyTorque, salt-spray or fit checks arranged when specified
Bag, box or bulk export packagingCoC, MTC and inspection report prepared on request
05
FAQ
Common Questions Before RFQ
Should I choose SS304 or SS316 hose clamps?
SS304 is suitable for general corrosion-resistant service. SS316 is preferred for marine, coastal, washdown, chemical or chloride-exposed environments.
What size information is needed for hose clamps?
Confirm the minimum and maximum clamping diameter, band width, material, screw material, standard, quantity and service environment. Hose outside diameter should be measured under actual assembly conditions.
What sizes are commonly requested?
Common RFQ ranges include 8-12 mm, 10-16 mm, 16-25 mm, 20-32 mm, 32-50 mm and 60-80 mm. Larger ranges up to 120 mm can be supplied by order.
Can worm drive hose clamps be used for high-pressure hoses?
Only if the hose, pressure rating and project specification approve this clamp type. Worm drive hose clamps should not be assumed suitable for safety-critical or pressure-rated joints without engineering confirmation.
Is passivation available?
Yes. Passivation is available for SS304 and SS316 stainless worm drive hose clamps to improve the stainless surface condition after forming and assembly.
Need DIN 3017 stainless worm drive hose clamps?
Send your clamp diameter range, band width, material, screw material, service environment, quantity and certificate requirements. Our team can confirm suitable SS304 or SS316 hose clamp supply.
