Straight Anchor Bolts
| Standard | EN 14399 ref · ASTM F1554 ref · OEM |
|---|---|
| Material | Q355 / 42CrMo |
| Strength Grade | 8.8 / 10.9 |
| Size Range | M16-M48 / Project range |
| Surface Treatment | HDG |
01
Product Description
Product Description & Key Specifications
Straight anchor bolts are project-manufactured foundation fasteners used for wind tower bases, steel columns, equipment foundations, structural baseplates and heavy anchoring systems. They are supplied in Q355 or 42CrMo with grade 8.8 / 10.9 strength options and drawing-based dimensions in the M16-M48 project range.
This product is different from post-installed wedge anchors. Straight anchor bolts are typically planned into the foundation design, with specified overall length, embedment, projection, thread length, nut and washer stack, template requirements and hot-dip galvanized corrosion protection. OEM drawings, EN 14399 references or ASTM F1554 references may be used depending on the project.
Hot-dip galvanizing is the standard finish for outdoor foundations and exposed baseplate assemblies. For large anchor bolt packages, the RFQ should confirm material grade, thread length, bend or straight form, washer plate requirement, nut grade, template layout, certificate scope and packaging by foundation set.
| Product type | Straight anchor bolts / foundation anchor rods |
|---|---|
| Standards | OEM / EN 14399 reference / ASTM F1554 reference |
| Material | Q355 / 42CrMo |
| Strength grade | 8.8 / 10.9 |
| Size range | M16-M48 / project range |
| Common models | M20 x 600, M24 x 800, M30 x 1000, M36 x 1200, M42 x 1500, M48 x 1800 by drawing |
| Thread type | Metric thread with drawing-defined thread length and projection |
| Surface finish | Hot-dip galvanized |
| Matched hardware | Hex nuts, EN 14399 heavy hex nuts, flat washers and large plate washers |
| Documentation | MTC, dimensional report, coating report and project packing list on request |

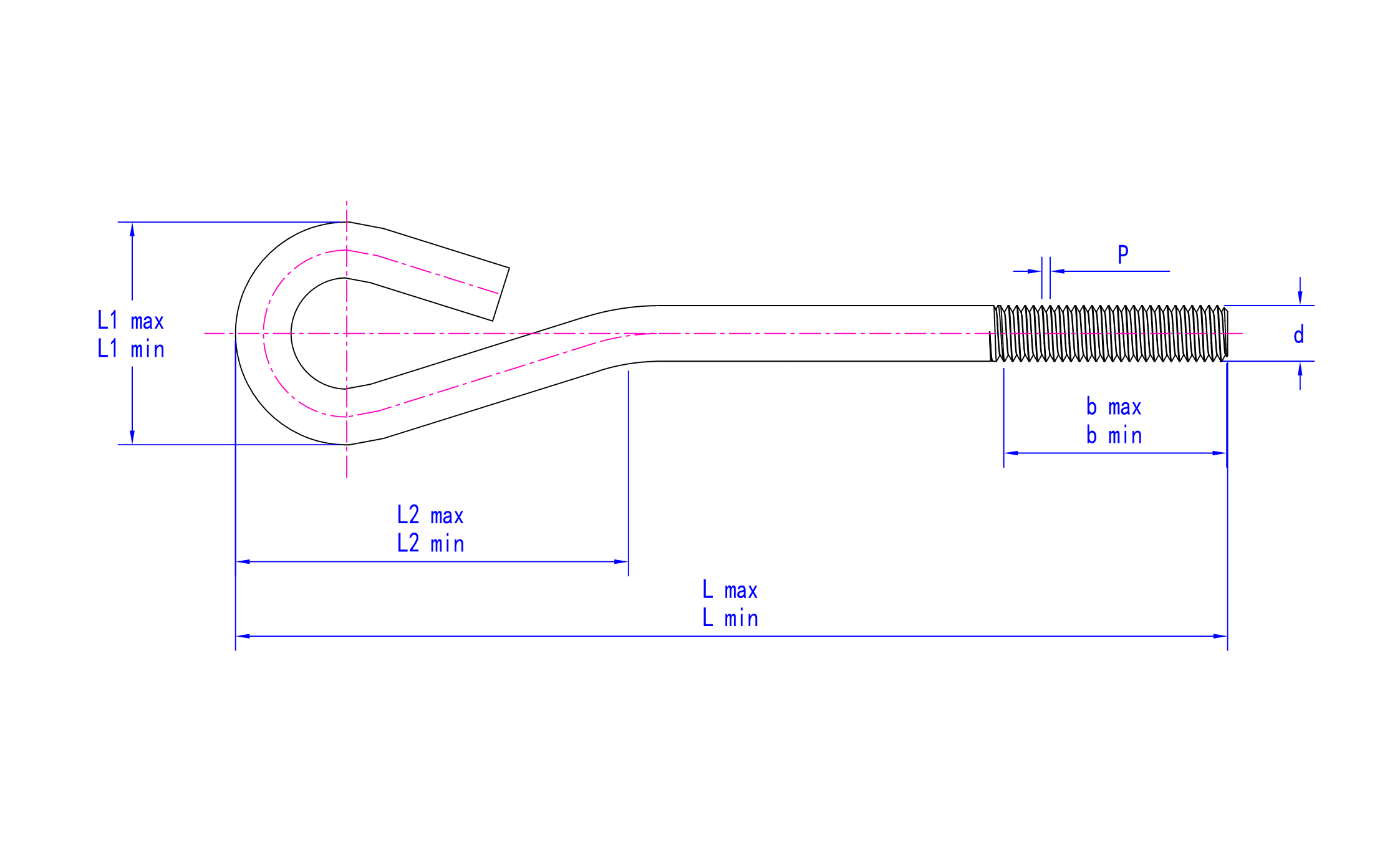

Dimensions & SpecificationsDIN 529
Technical Drawing
Dimensional Table
| Parameter | M8 | M10 | M12 | M16 | M20 | M24 | M30 | M36 | M42 | M48 | M56 | M64 | M72 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 6 |
| b/max | 22.5 | 28 | 33.5 | 44 | 55 | 66 | 82 | 98 | 114 | 130 | 151 | 172 | 192 |
| b/min | 20 | 25 | 30 | 40 | 50 | 60 | 75 | 90 | 105 | 120 | 140 | 160 | 180 |
| L1/max | 27 | 33 | 39 | 51 | 63 | 78 | 98 | 118 | 138 | 158 | 183 | 203 | 243 |
| L1/min | 21 | 27 | 33 | 45 | 57 | 72 | 92 | 112 | 132 | 152 | 177 | 197 | 237 |
| L2/max | 50 | 60 | 70 | 90 | 110 | 130 | 160 | 195 | 225 | 255 | 295 | 340 | 375 |
| L2/min | 40 | 50 | 60 | 80 | 100 | 120 | 150 | 185 | 215 | 245 | 285 | 330 | 365 |
02
Selection
Selection Advantages by Application
Wind Tower Foundations
M30-M48 straight anchor bolts are used in wind tower foundation cages, base rings and template assemblies. Buyers usually require HDG finish, traceable lots and nuts/washers packed by foundation set.
Renewable energy fastenersSteel Columns and Baseplates
M20-M36 anchor bolts support steel column baseplates, equipment skids and industrial frames. Confirm projection length, thread length and washer plate requirement from the foundation drawing.
Construction fastenersPower and Heavy Equipment Foundations
Grade 8.8 / 10.9 straight anchors in Q355 or 42CrMo are selected for transformer bases, machinery foundations and heavy energy equipment where structural load and corrosion protection are critical.
Power generation fasteners03
Assembly
Recommended Matching Products
04
Manufacturing
Manufacturing & Quality Control
Manufacturing CapabilityQuality Control
Cutting, straightening and threading to project drawingMaterial grade, heat number and diameter verification
Heat treatment for 8.8 / 10.9 grades where requiredTensile, yield, elongation or hardness testing by order requirement
Hot-dip galvanizing for outdoor foundation serviceCoating thickness, thread fit and visual inspection after HDG
Anchor bolt sets supplied with nuts, washers or platesOverall length, thread length, projection and drawing dimension inspection
Project set packaging for foundation cages and site installationPacking list and label control by foundation, size, lot and quantity
05
FAQ
Common Questions Before RFQ
Are straight anchor bolts the same as wedge anchors?
No. Straight anchor bolts are normally cast-in or foundation-designed anchors, while wedge anchors are post-installed expansion anchors for drilled holes.
What information is needed for anchor bolt production?
Provide diameter, overall length, thread length, projection, material, grade, finish, nut and washer requirement, drawing and certificate scope.
Can anchor bolts be supplied hot-dip galvanized?
Yes. HDG is common for outdoor foundation bolts, but nut fit and coating thickness should be controlled after galvanizing.
Can you pack anchor bolts by foundation set?
Yes. Anchor bolts, nuts, washers and plates can be packed by project line item or foundation set to support site installation.
Can ASTM F1554 references be used?
Yes. ASTM F1554 can be used as a project reference when grade, material, dimensions and testing requirements are clearly defined.
Need straight anchor bolts for foundations?
Send your anchor drawing, diameter, length, thread length, grade, finish, nut/washer set and packing requirement. We can quote HDG M16-M48 anchor bolts for wind tower, steel column and equipment foundations.
