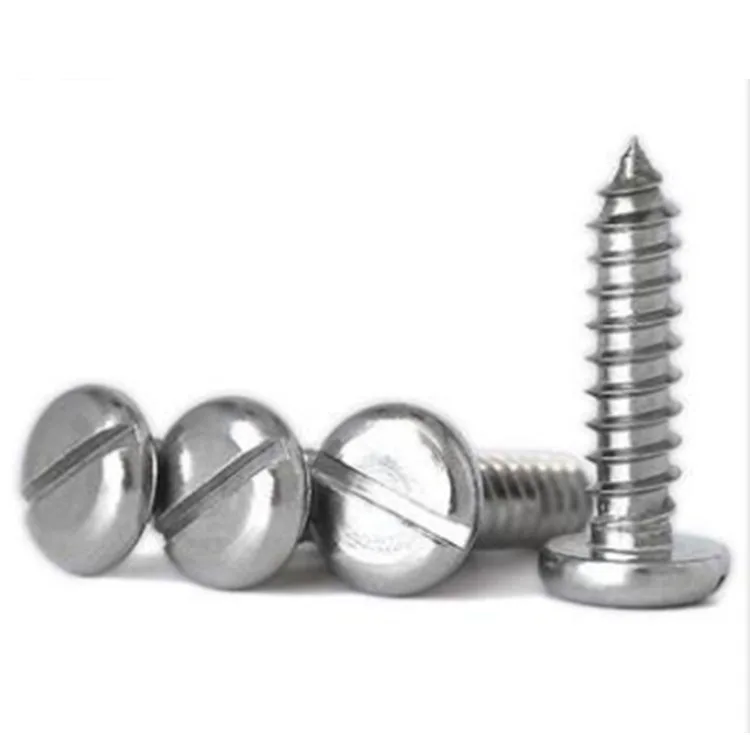

Stainless Slotted Pan Head Self Tapping Screws
| Standard | DIN 7971 · ISO 1481 |
|---|---|
| Material | SS304 / SS316 |
| Strength Grade | A2-70 / A4-70 |
| Size Range | ST2.2-ST6.3 |
| Surface Treatment | Passivation / Polished |
01
Product Description
Product Description & Key Specifications
Stainless slotted pan head self tapping screws are used for exposed hardware, sheet metal fixing, access panels and maintenance-friendly assemblies where a simple slotted drive is preferred. The pan head provides bearing area on the surface, while the self tapping thread forms its mating thread in suitable sheet or pre-drilled material.
DIN 7971 / ISO 1481 screws are specified by ST size, length, head form, slotted drive, stainless grade and finish. Because slotted drive torque capacity is limited compared with socket or cross recess drives, pilot hole size, installation torque and tool access should be checked carefully.
SS304 / A2 provides general corrosion resistance for construction hardware and interior equipment. SS316 / A4 is recommended for coastal, chloride, washdown and selected rail exterior conditions. Passivated finish is standard for corrosion performance; polishing can be requested for visible stainless hardware.
| Product type | Stainless slotted pan head self tapping screws |
|---|---|
| Standards | DIN 7971 / ISO 1481 |
| Material | SS304 / SS316 |
| Strength grade | A2-70 / A4-70 |
| Size range | ST2.2-ST6.3 |
| Common models | ST2.9 x 13, ST3.5 x 16, ST4.2 x 19, ST4.8 x 25, ST5.5 x 32, ST6.3 x 38 |
| Drive and head | Slotted pan head for exposed or maintenance-access panels |
| Surface finish | Passivation / Polished |
| Matched hardware | Sheet metal, stainless panels, access covers and light brackets |
| Documentation | CoC, material certificate and dimensional report on request |
Dimensions & SpecificationsDIN 7971 / ISO 1481

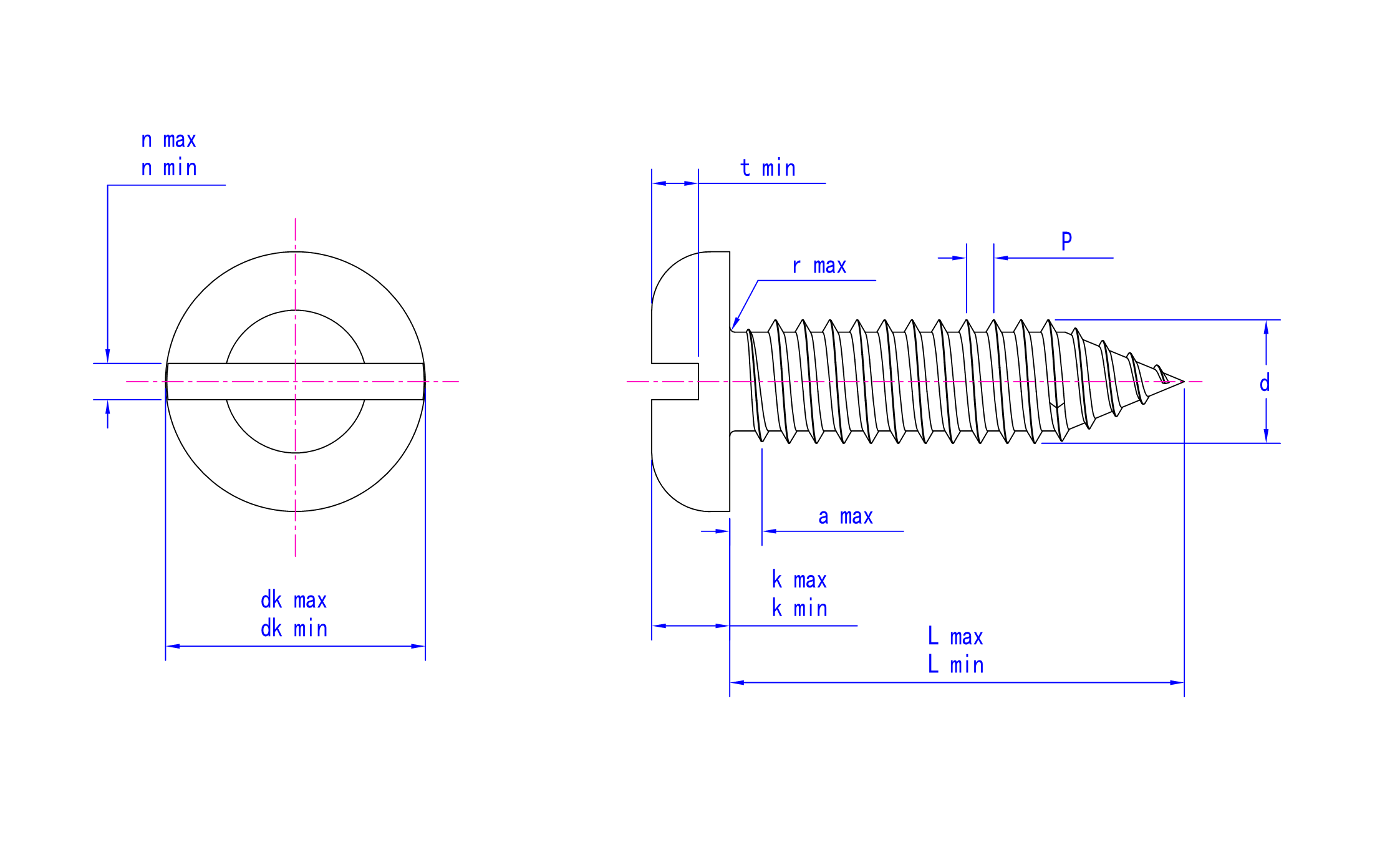

Technical Drawing
Dimensional Table
| Parameter | ST2.2 | ST2.9 | ST3.5 | ST3.9 | ST4.2 | ST4.8 | ST5.5 | ST6.3 |
|---|---|---|---|---|---|---|---|---|
| P | 0.8 | 1.1 | 1.3 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 |
| a/max | 0.8 | 1.1 | 1.3 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 |
| dk/max | 4.2 | 5.6 | 6.9 | 7.5 | 8.2 | 9.5 | 10.8 | 12.5 |
| dk/min | 3.9 | 5.3 | 6.9 | 7.14 | 7.84 | 9.14 | 10.37 | 12.07 |
| k/max | 1.35 | 1.75 | 2.1 | 2.25 | 2.45 | 2.8 | 3.2 | 3.65 |
| k/min | 1.15 | 1.5 | 1.85 | 2 | 2.15 | 2.5 | 2.85 | 3.3 |
| n/min | 0.66 | 0.86 | 1.06 | 1.06 | 1.26 | 1.26 | 1.66 | 1.66 |
| n/max | 0.8 | 1 | 1.2 | 1.2 | 1.51 | 1.51 | 1.91 | 1.91 |
| r/max | 0.3 | 0.4 | 0.5 | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 |
| t/min | 0.55 | 0.75 | 0.95 | 1.05 | 1.15 | 1.35 | 1.55 | 1.8 |
| t/max | 0.8 | 1 | 1.25 | 1.4 | 1.5 | 1.7 | 1.95 | 2.2 |
02
Selection
Selection Advantages by Application
Exposed Hardware and Access Panels
Slotted pan head self tapping screws are used in access covers, inspection panels and exposed hardware where simple removal with a flat blade tool is preferred.
Industrial equipment fastenersStainless Sheet Fixing
SS304 / SS316 slotted screws can be used in stainless sheet assemblies when pilot hole size, sheet thickness and installation torque are controlled.
Construction fastenersRailway Interior Fittings
DIN 7971 / ISO 1481 stainless screws support selected rail interior fittings, covers and brackets where corrosion resistance and service access matter.
Railway fasteners03
Assembly
Recommended Matching Products
04
Manufacturing
Manufacturing & Quality Control
Manufacturing CapabilityQuality Control
Cold heading and self tapping thread formingSS304 / SS316 material and wire diameter verification
Slotted pan head forming by DIN 7971 / ISO 1481 referenceSlot width, head dimensions, thread profile and point form inspection
Passivation or polishing for stainless fastener surfaceSurface appearance, burr and contamination review after finishing
ST2.2-ST6.3 standard and project-length supplyDimensional report and sample fit check when specified
Bulk, carton or maintenance kit packagingPackage label, quantity and lot traceability verification
05
FAQ
Common Questions Before RFQ
Why choose a slotted pan head self tapping screw?
It is useful for simple exposed hardware or maintenance panels where a flat blade drive is preferred and high installation torque is not required.
What is the difference between DIN 7971 and DIN 7981?
DIN 7971 uses a slotted pan head. DIN 7981 uses a cross recessed pan head.
Can slotted self tapping screws be polished?
Yes. Polished stainless screws can be supplied for visible hardware, while passivation supports corrosion resistance.
Should I use SS304 or SS316?
Use SS304 for general environments and SS316 for coastal, chloride, washdown or more corrosive conditions.
What details are needed for an RFQ?
Send standard, ST size, length, stainless grade, finish, pilot hole or sheet thickness, quantity and packaging requirement.
Need stainless slotted pan head self tapping screws?
Send your DIN / ISO standard, ST size, length, material, finish, sheet thickness and quantity. We can quote passivated or polished stainless screws for exposed hardware and panel assemblies.
